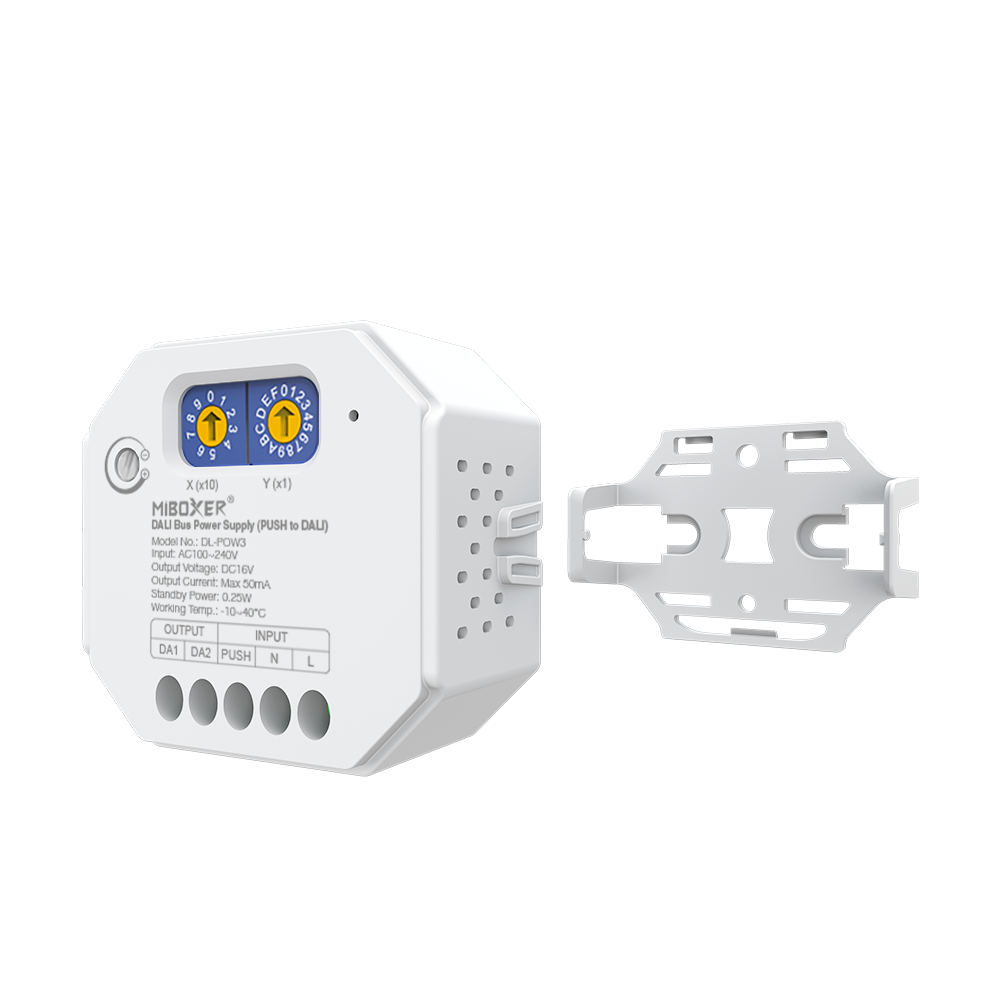

DALI Bus Power Supply (PUSH to DALI)
This product is already in your cart: 0 pcs View cart
Quantity discount
| Quantity | Price |
|---|---|
| 1 - 9 | 17,60 € |
| 10 - 19 | 15,30 € |
| 20+ | 14,40 € |
Already a wholesale customer? Log in to see your prices
Available on backorder

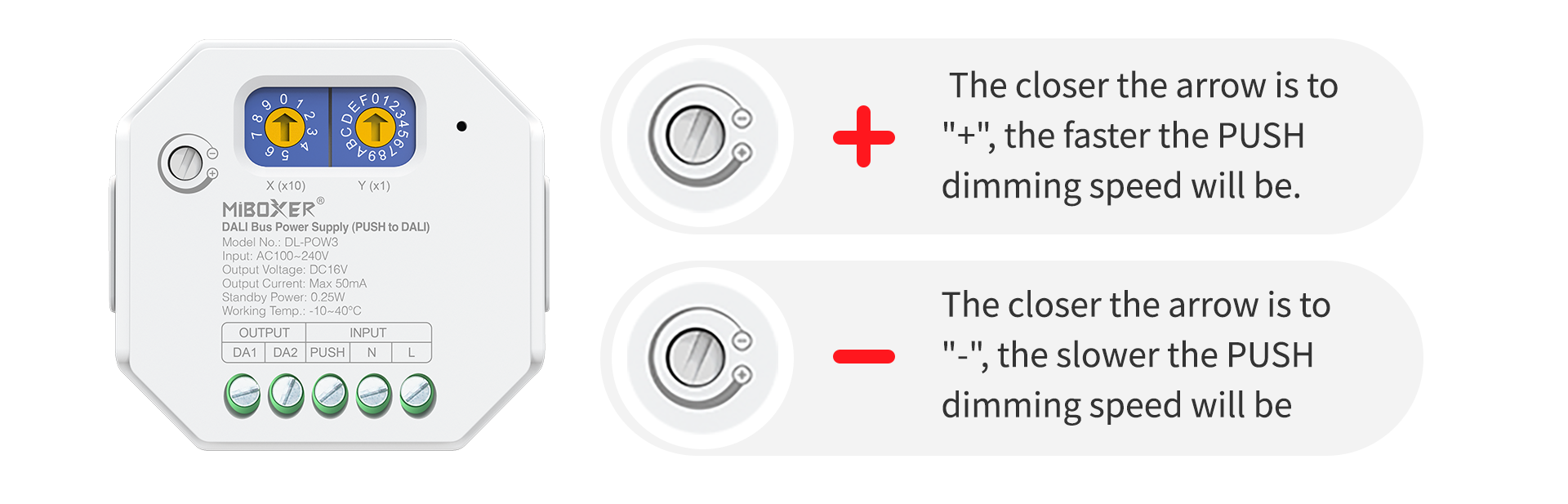

PUSH dimming speed setting

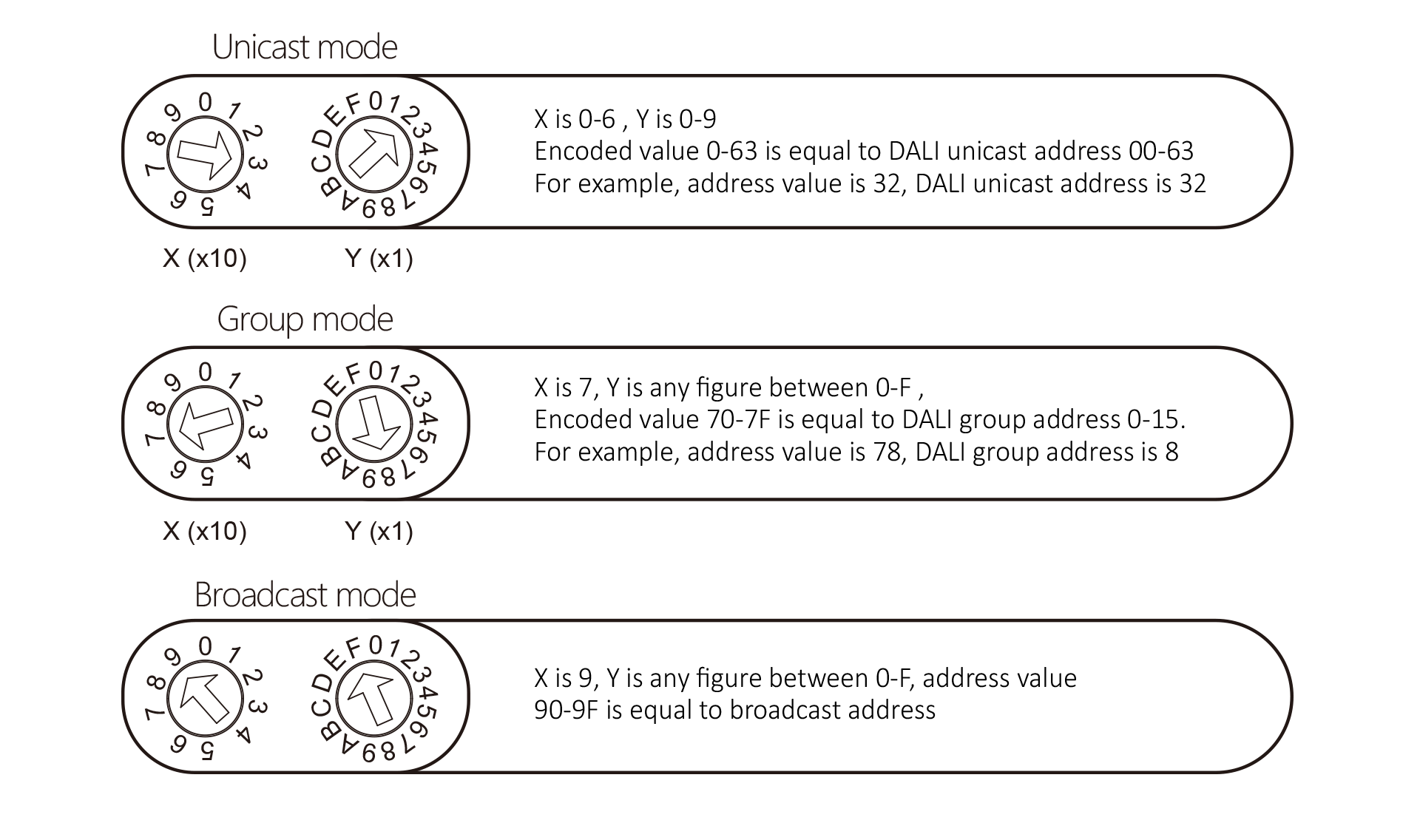

DALI address setting
ddress Value =Left rotating switch value X (x10) +Right rotating
switch value YFor example, left X value is 3, right Y value is 2,
address value= 3*10+2=32

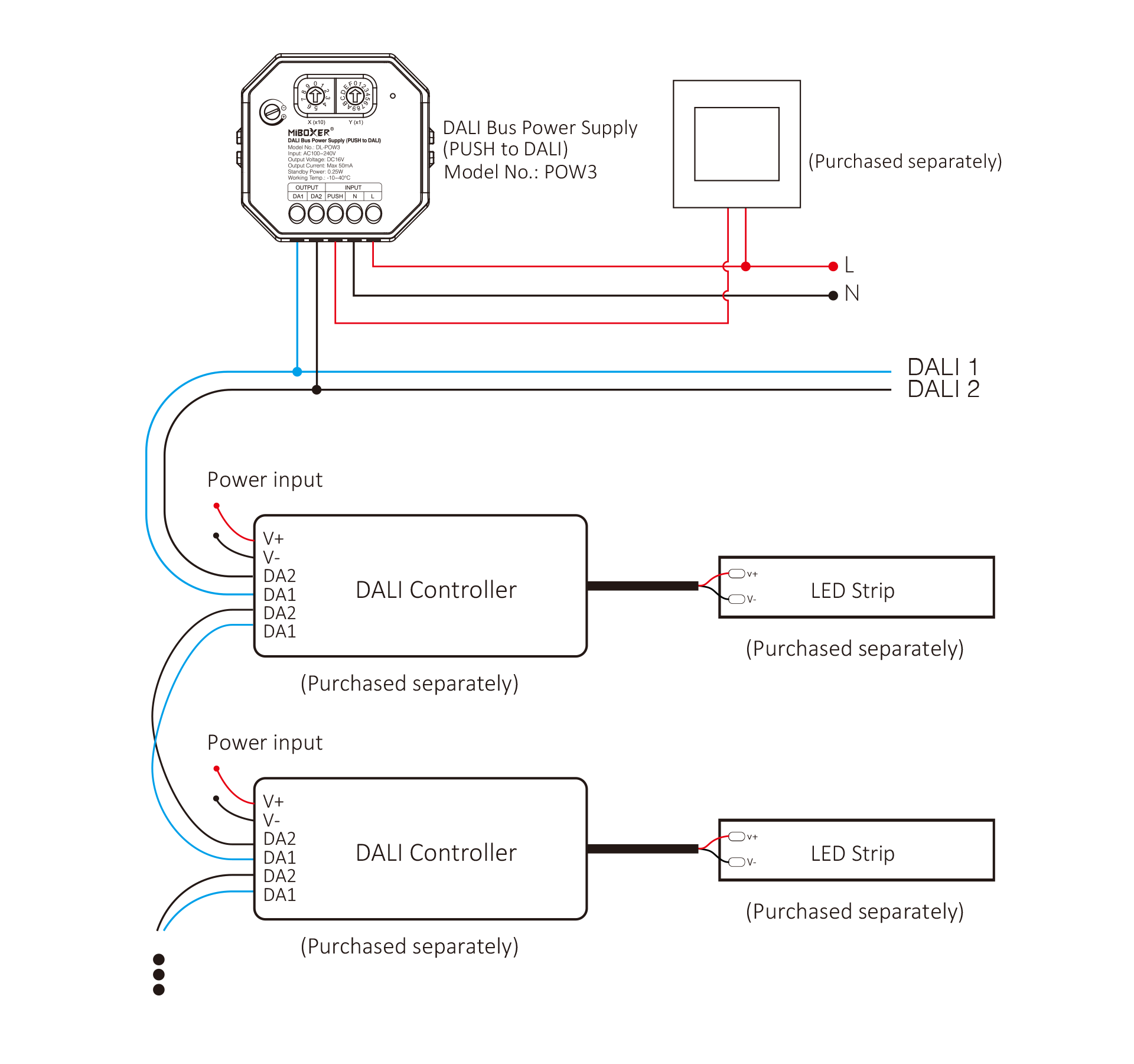

Connection Diagram
| Name: | DALI Bus Power Supply (PUSH to DALI) |
|---|---|
| Model No.: | DL-POW3 |
| Input Voltage: | AC100-240V |
| Output Voltage: | DC16V |
| Output Current: | Max 50mA |
| Standby Power: | 0.25W |
| Input Signal: | PUSH |
| Output Signall: | DALI |
| Working Temp: | -10~40℃ |
