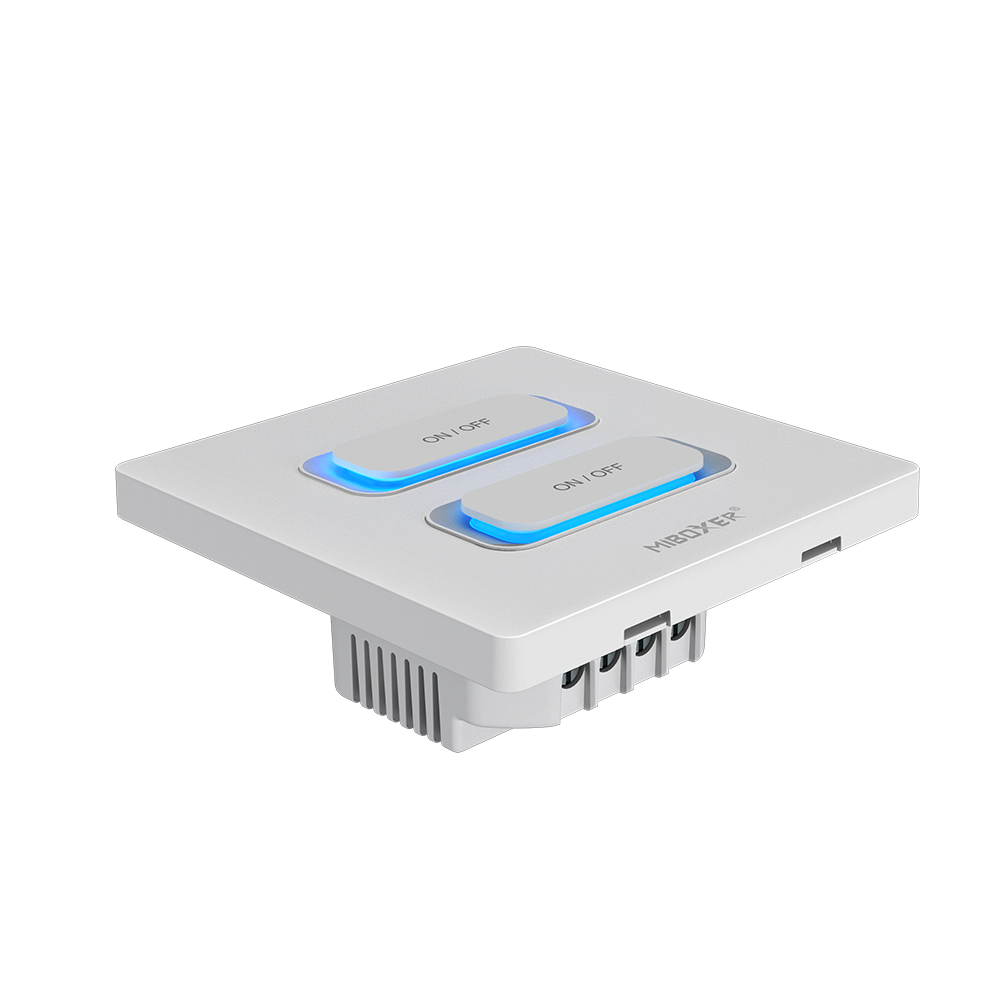

2 GANG Smart Switch (Zigbee 3.0 + 2.4G)
This product is already in your cart: 0 pcs View cart
Quantity discount
| Quantity | Price |
|---|---|
| 1 - 9 | 24,30 € |
| 10 - 19 | 21,10 € |
| 20+ | 19,90 € |
Already a wholesale customer? Log in to see your prices

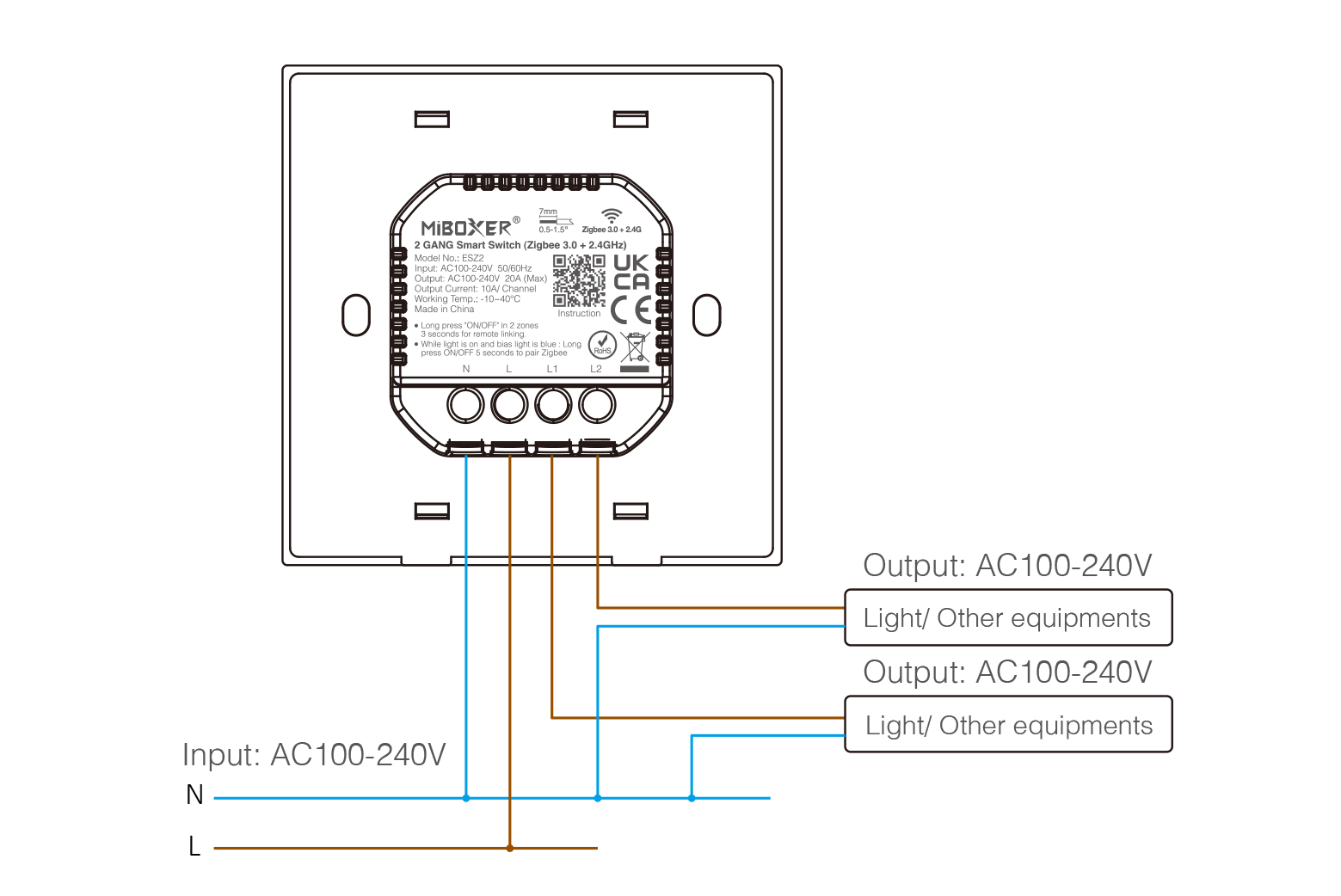

Connection Diagram
| Product Name: | 2 GANG Smart switch (Zigbee 3.0 + 2.4G) |
|---|---|
| Model No.: | ESZ2-W |
| Input Voltage: | AC100~240V 50/60Hz |
| Output Voltage: | AC100~240V 50/60Hz |
| Output Current: | 10A/ Channel |
| Total Output: | Max 20A |
| IP Rating: | IP20 |
| Working Temperature: | -10~40℃ |
| Control Signal: | Zigbee 3.0 + 2.4G |
| Control Distance: | Zigbee: 50m(Open Aera) RF: 30m |
| EMC Standard (EMC): |
ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety Standard (LVD): | EN 62368-1: 2020 + A1: 2020 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, RED |
