Microwave Radar Human Presence Sensor (2.4GHz)
This product is already in your cart: 0 pcs View cart
Quantity discount
| Quantity | Price |
|---|---|
| 1 - 9 | 18,10 € |
| 10 - 19 | 15,70 € |
| 20+ | 14,80 € |
Already a wholesale customer? Log in to see your prices

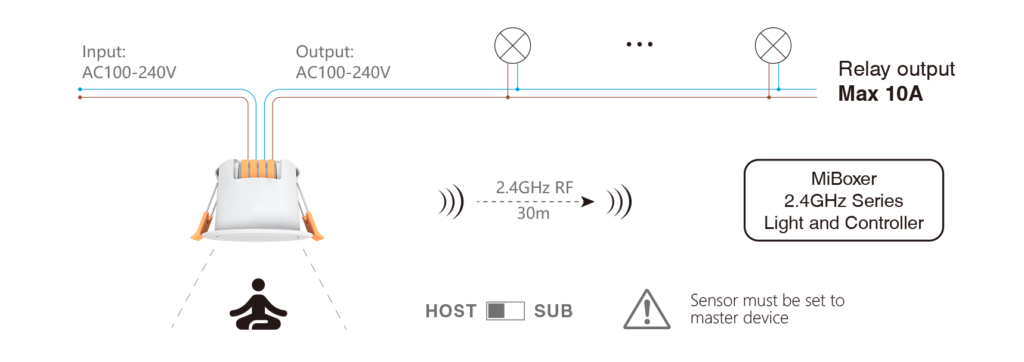

Offline Application Connection Diagram
Usually used for narrow area

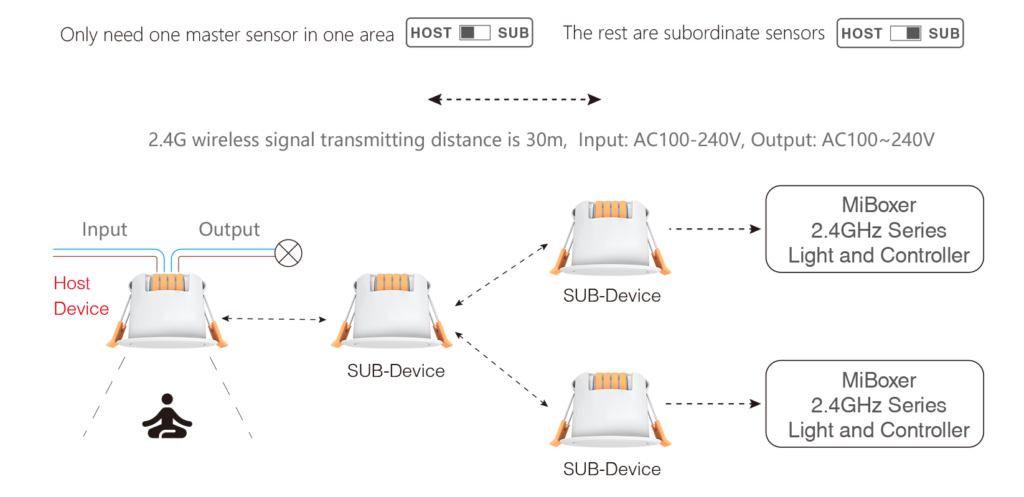

Networking application connection Diagram
Wide Application

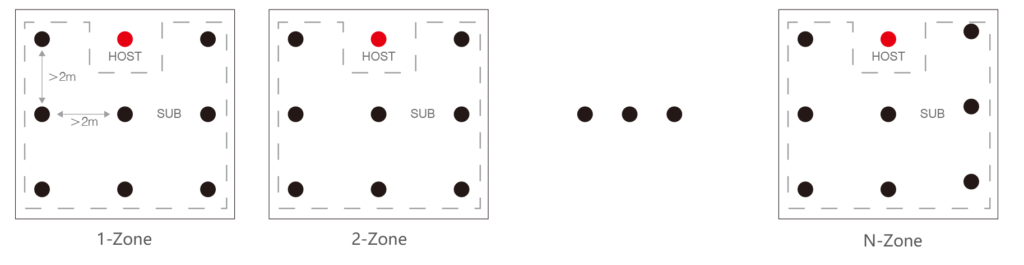

Completing configuration in every area and master sensor can be installed in any place
Attention: the distance between two sensors must be over 2m
Attention: the distance between two sensors must be over 2m
| Product Name: | Microwave Radar Human Presence Sensor |
|---|---|
| Model No.: | HPS1-RF |
| Input Voltage: | AC100-240V 50/60Hz |
| Output Current: | Max 10A |
| Microwave Frequency: | 24GHz |
| Detection Distance: | 3~8m |
| Protocol: | 2.4GHz RF |
| Control Distance: | 30m |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-3 V2.3.2 |
| Safety Standard (LVD): | EN 61347-2-11: 2001+A1: 2019 EN 61347-1: 2015+A1:2021 EN 62493: 2015+A1:2022 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
