1-Zone Remote Control Module RGB+CCT
This product is already in your cart: 0 pcs View cart
Quantity discount
| Quantity | Price |
|---|---|
| 1 - 9 | 3,80 € |
| 10 - 19 | 3,30 € |
| 20+ | 3,10 € |
Already a wholesale customer? Log in to see your prices

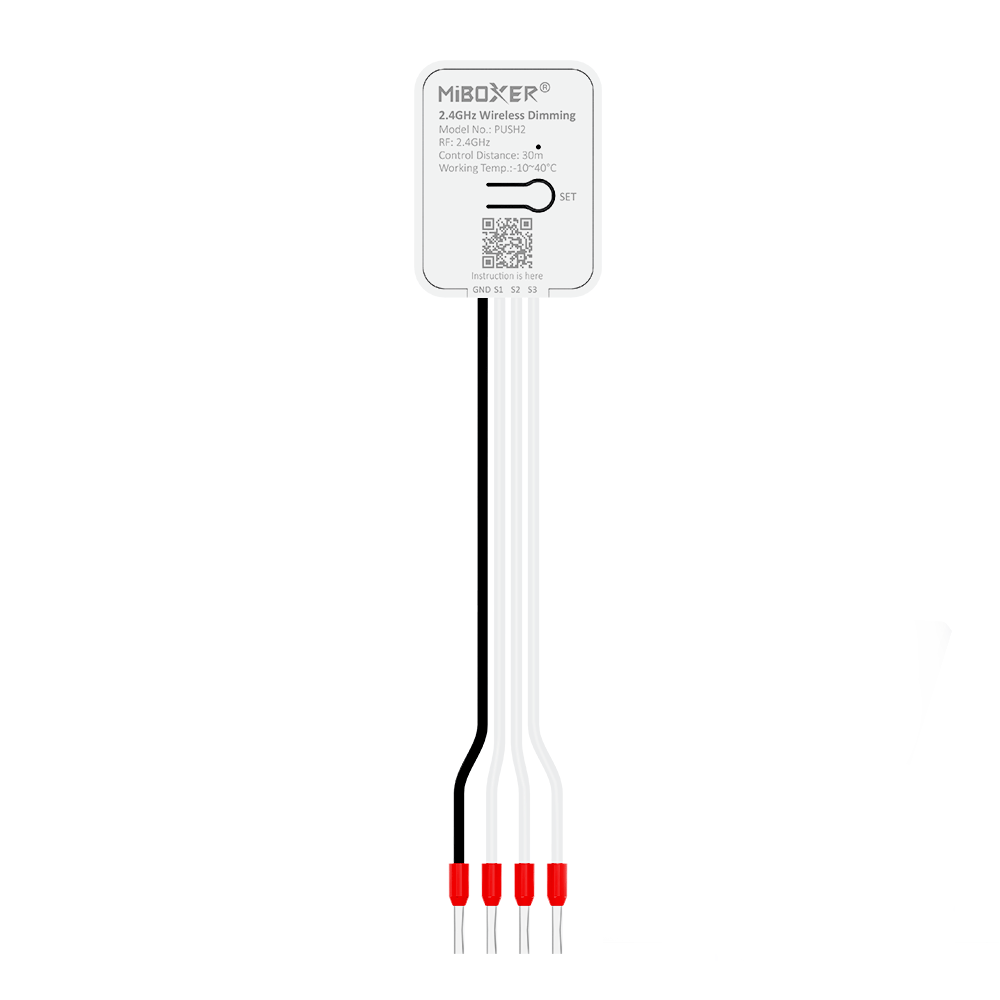

The PUSH2 single-zone RGB+CCT module is a remote control unit that allows for quick conversion of a traditional push switch into a RF remote controller for other MIBOXER products. PUSH2 is battery power device and operates within a safe voltage range of 3V, enabling installation even by individuals without specialized knowledge or qualifications. PUSH2 does not interfere with the electrical installation, remaining completely independent, and the CR2032 battery allows for up to 3 years of maintenance-free operation under standard use. Witch PUSH2 you have ability to control each light parameter like brightness, color temperature and light color.

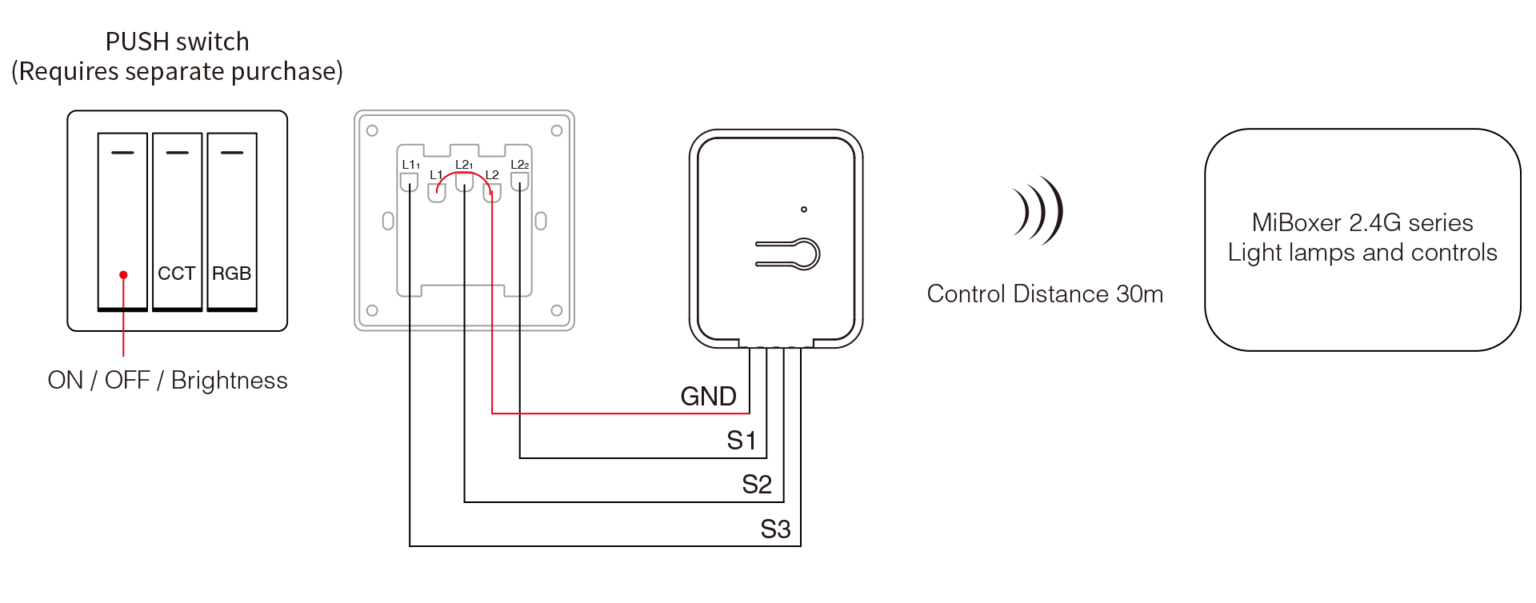

Connection diagram
Requires use with PUSH switch
| Product Name: | 2.4GHz Wireless Dimming (RGB+CCT) |
|---|---|
| Model No.: | PUSH2 |
| Input Voltage: | 3V (CR2032*1PC) |
| Transmitting Power: | 6dBm |
| RF: | 2.4GHz |
| Control Distance: | 30m |
| IP Rating: | IP20 |
| Working Temperature: | -10~40℃ |
| Standby Power Consumption: | <3μA |
| Dimming Grayscale: | 4096 Levels |
|---|---|
| Dimming Range: | 0.1%-100% |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-3 V2.1.1 |
| Safety Standard (LVD): | EN 61347-1：2015+A1: 2018 EN 61347-2-11: 2001+A1:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, RED |
