2 in 1 Controller (Matter Over WiFi+2.4GHz)

Product code:: SM2
Bulk package:: 200 pcs

18,00 €

Net price

Quantity discount

Quantity	Price
1 - 9	18,00 €
10 - 19	15,70 €
20+	14,80 €

Already a wholesale customer? Log in to see your prices

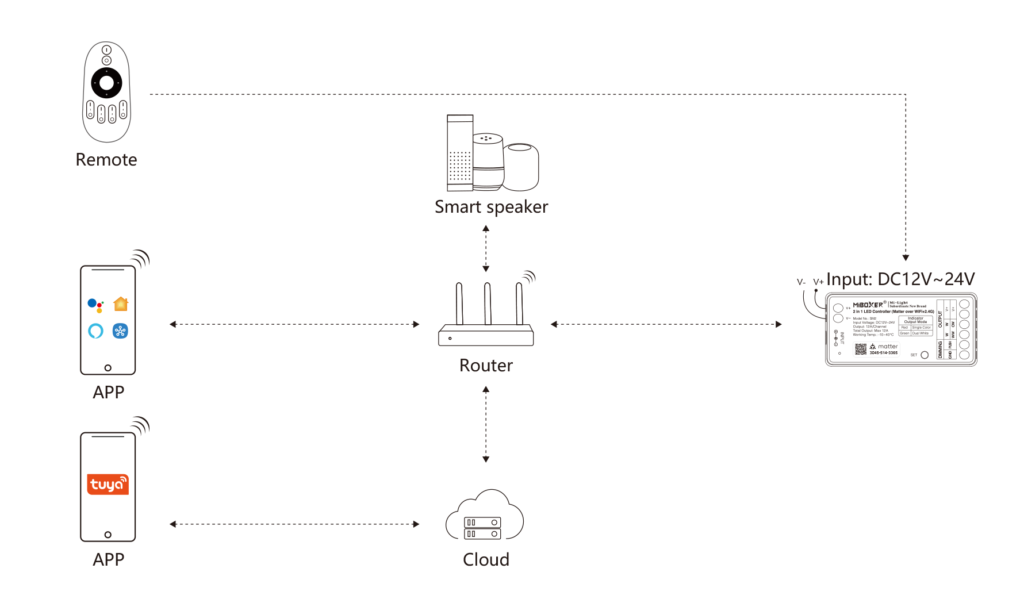

Controller SM2 certified with the Matter Over WiFi protocol, this device offers broad compatibility with multiple platforms and brands within the Matter ecosystem and works with all 2.4G MiBoxer RF remote controls. It features easy setup via QR code, voice control with Siri, Google Assistant, and Alexa, custom scene and dynamic mode options, and includes a DND (Do Not Disturb) mode to help save power, especially during outages. Other highlights include an extended remote range, automatic signal relay and synchronization, and integration with Apple HomeKit, Amazon Alexa, Google Home, SmartThings, and Tuya Smart.

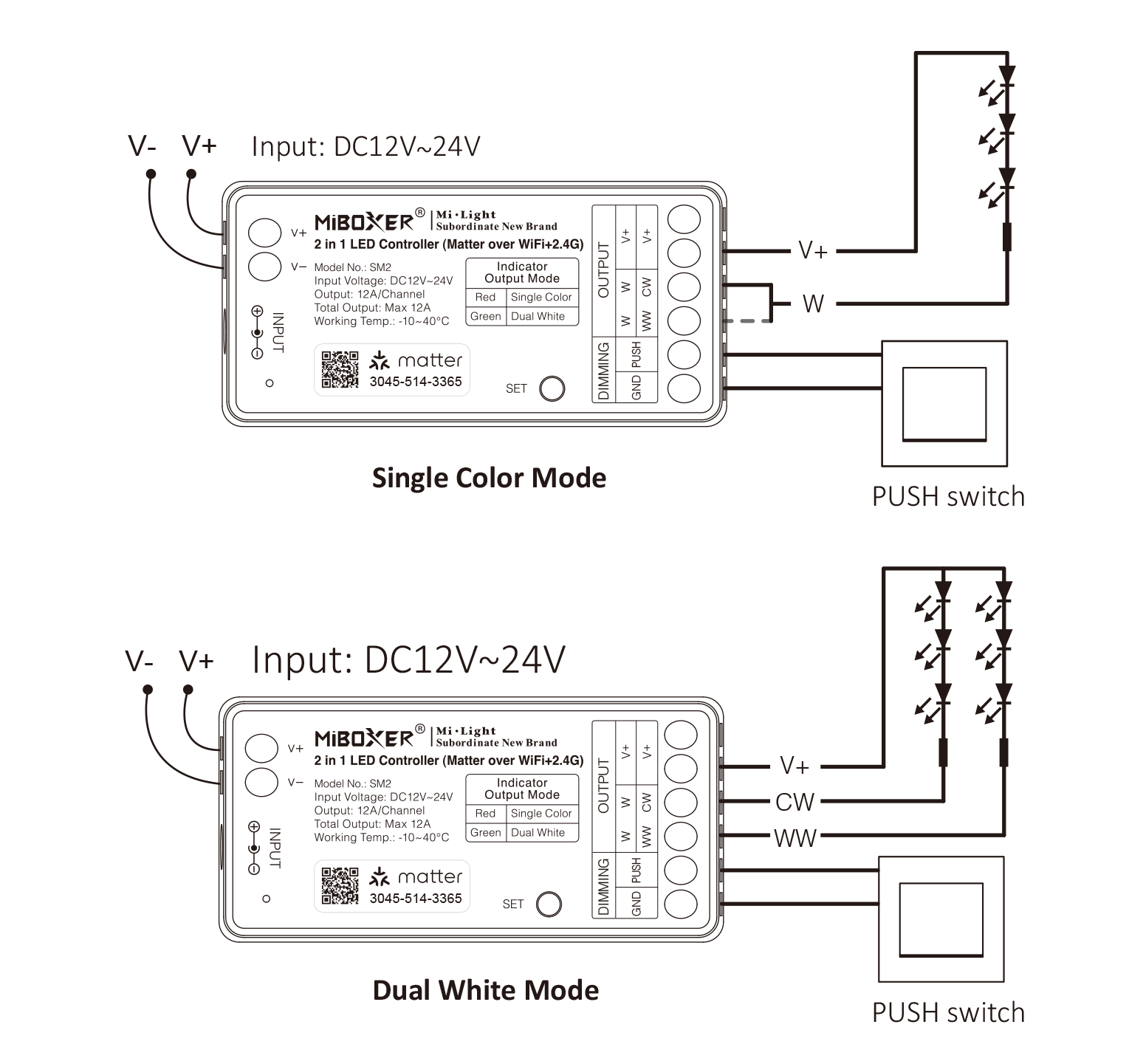

Connection Diagram

Product Name:	2 in 1 Controller (Matter Over WiFi+2.4GHz)
Model No.:	SM2
Input Voltage:	DC12-24V
Output Current:	12A/ Single channel
Total Output:	Max 12A
Protocol:	WiFi+2.4G RF
WiFi Standard:	IEEE 802.11b/g/n 2.4GHz
Control Distance:	RF: 30m
IP Rate:	IP20
Working Temperature:	-10~40°C
EMC Standard (EMC):	ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01)
Safety Standard (LVD):	EN 61347-1：2015+A1: 2021 EN 61347-2-11: 2001+A1:2019
Radio Equipment (RED):	ETSI EN 300 440 V2.2.1
Certification:	CE, EMC, RED
