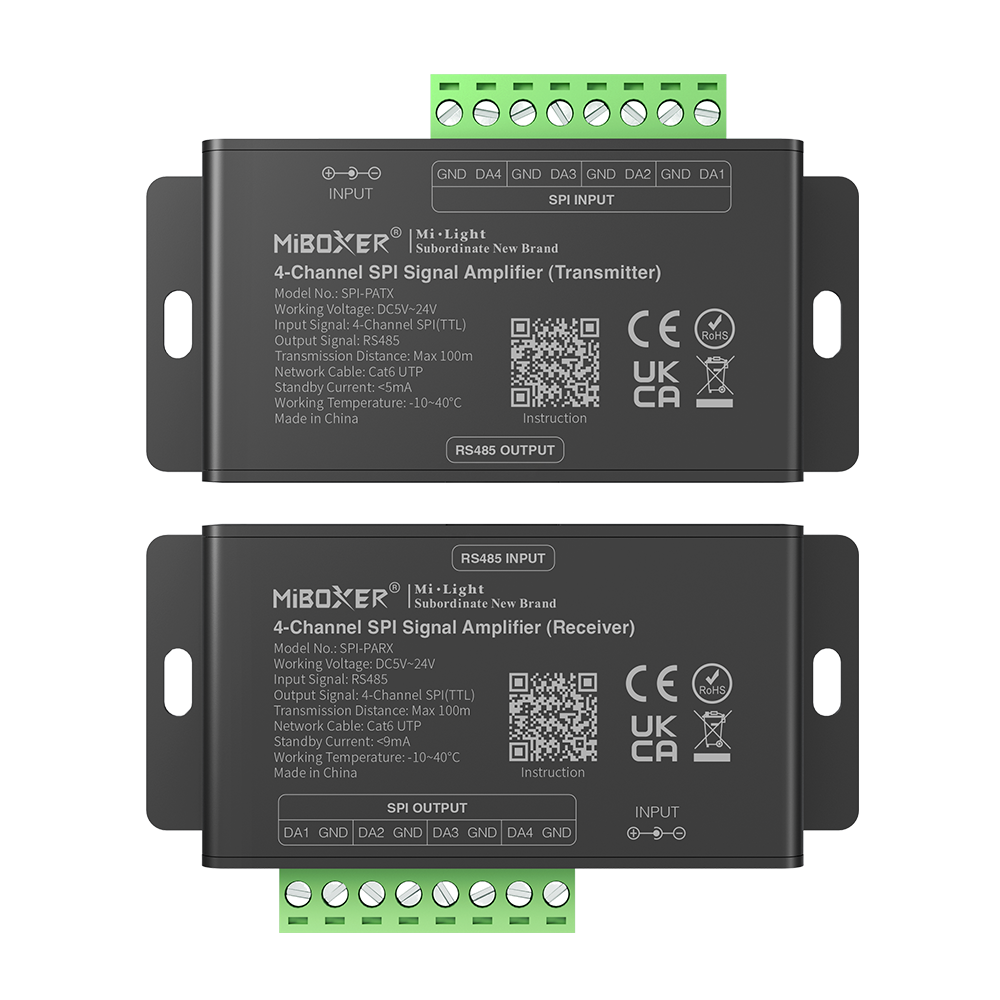

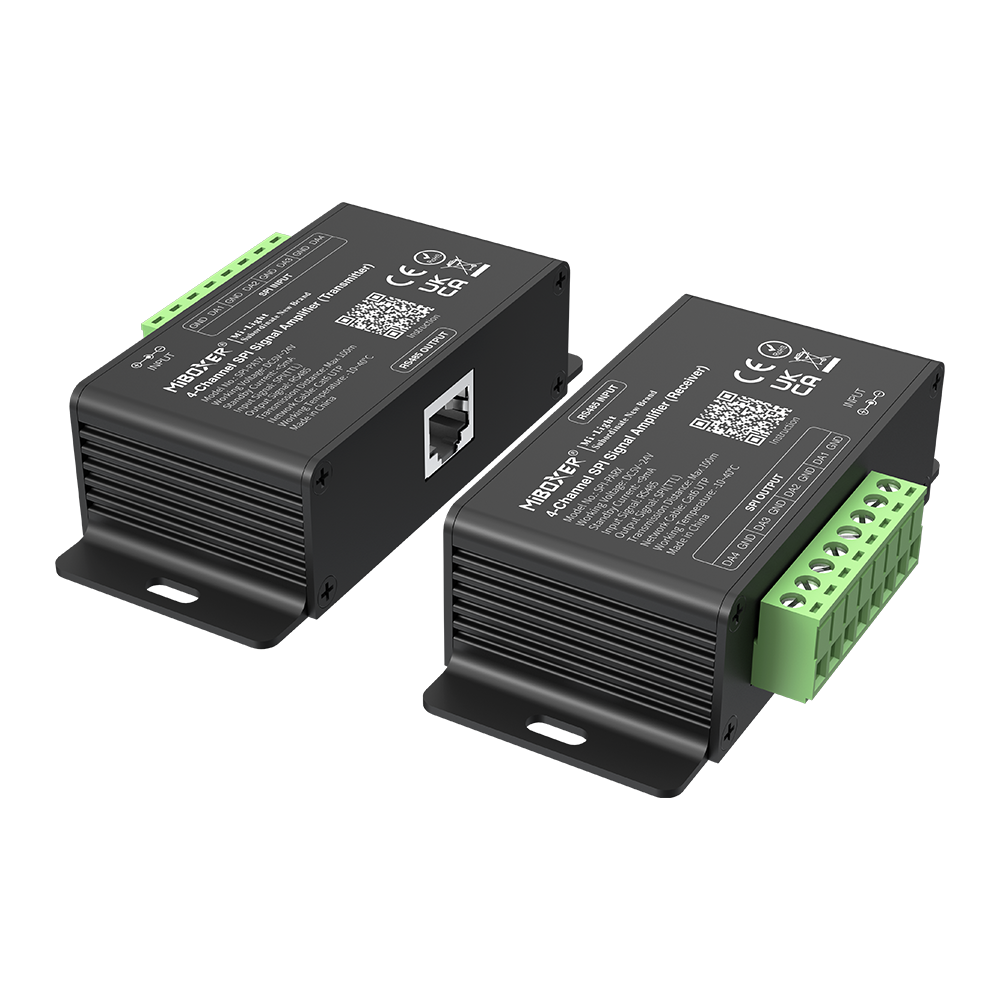

4-Channel SPI Signal Amplifier & Receiver
This product is already in your cart: 0 pcs View cart
Quantity discount
| Quantity | Price |
|---|---|
| 1 - 9 | 27,10 € |
| 10 - 19 | 23,60 € |
| 20+⅓ carton | 22,20 € |
Already a wholesale customer? Log in to see your prices

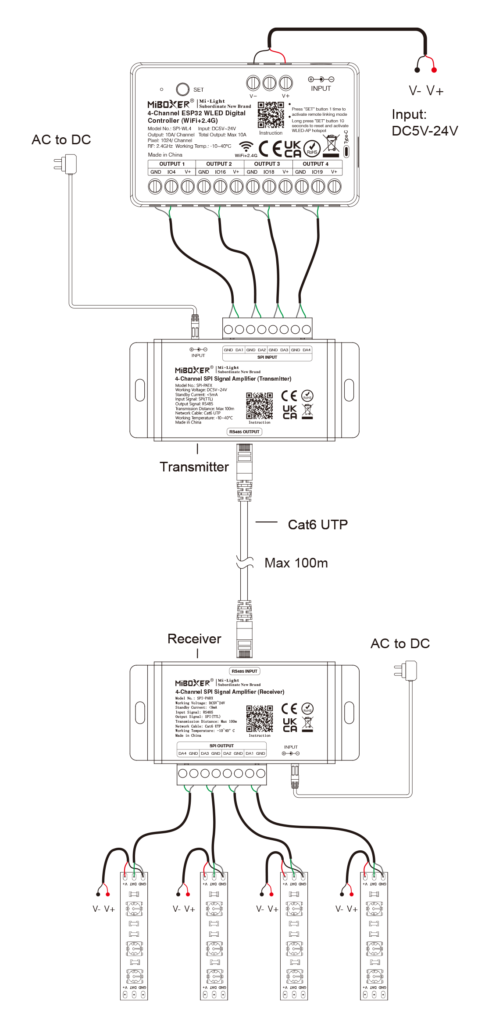

Connection Diagram
| Product Name: | 4-Channel SPI Signal Amplifier & Receiver |
|---|---|
| Model No.: | SPI-PA+ |
| Working Voltage: | DC5V~24V |
| Input Signal: | 4-Channel SPI(TTL) |
| Output signal: | 4-Channel SPI(TTL) |
| Type: | RS485 |
| Cable Type: | Cat6a (Purchased Separately) |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |
| Dimension: | 74.5*36*17mm |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety Standard (LVD): | EN 62368-1; 2020+A11;2020 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
