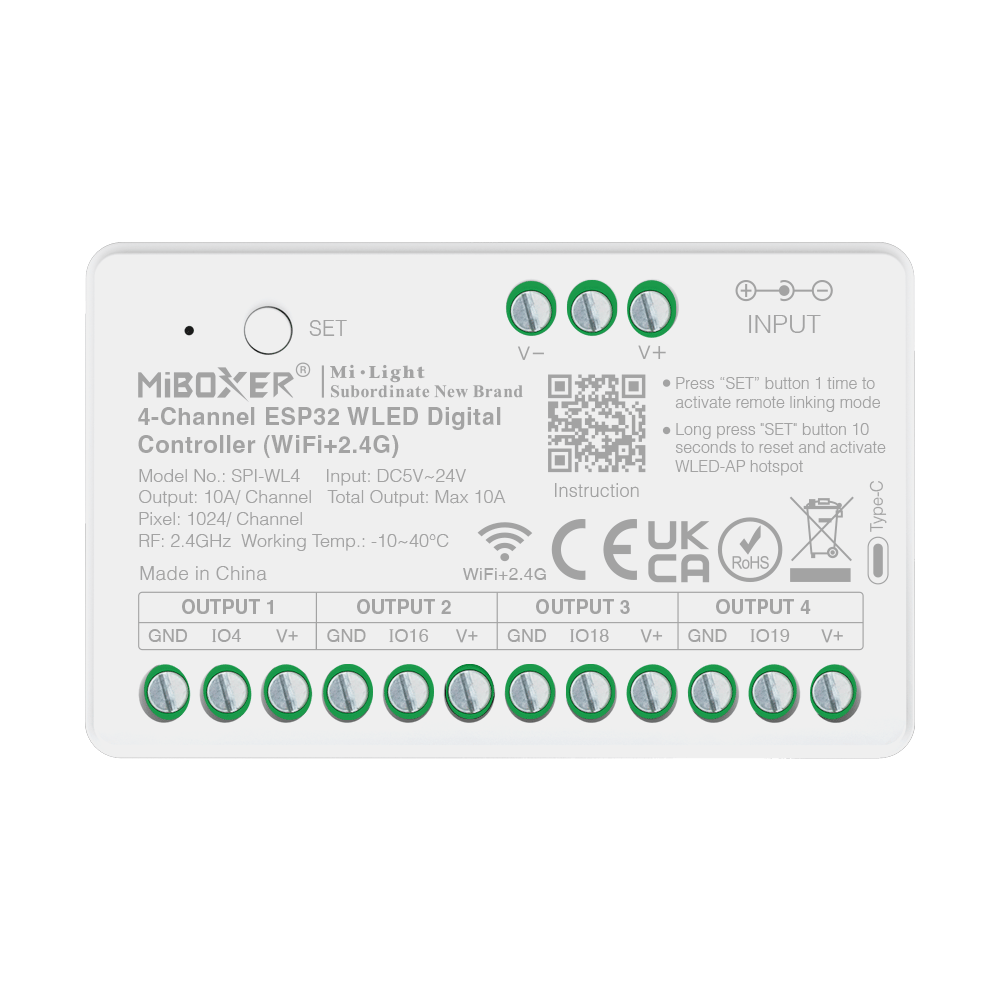

4-Channel ESP32 WLED Digital Controller (WiFi+2.4G)
This product is already in your cart: 0 pcs View cart
Quantity discount
| Quantity | Price |
|---|---|
| 1 - 9 | 20,30 € |
| 10 - 19 | 17,70 € |
| 20+ | 16,60 € |
Already a wholesale customer? Log in to see your prices
Available on backorder

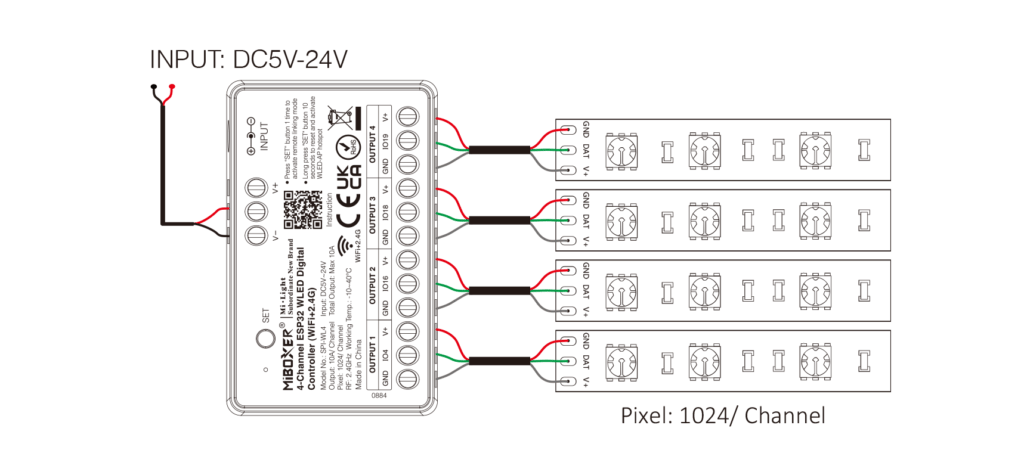

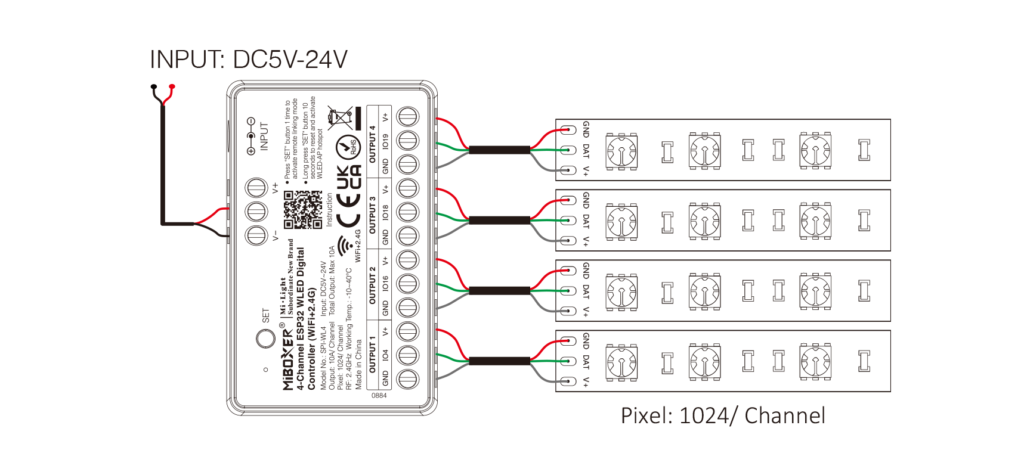

Connection Diagram

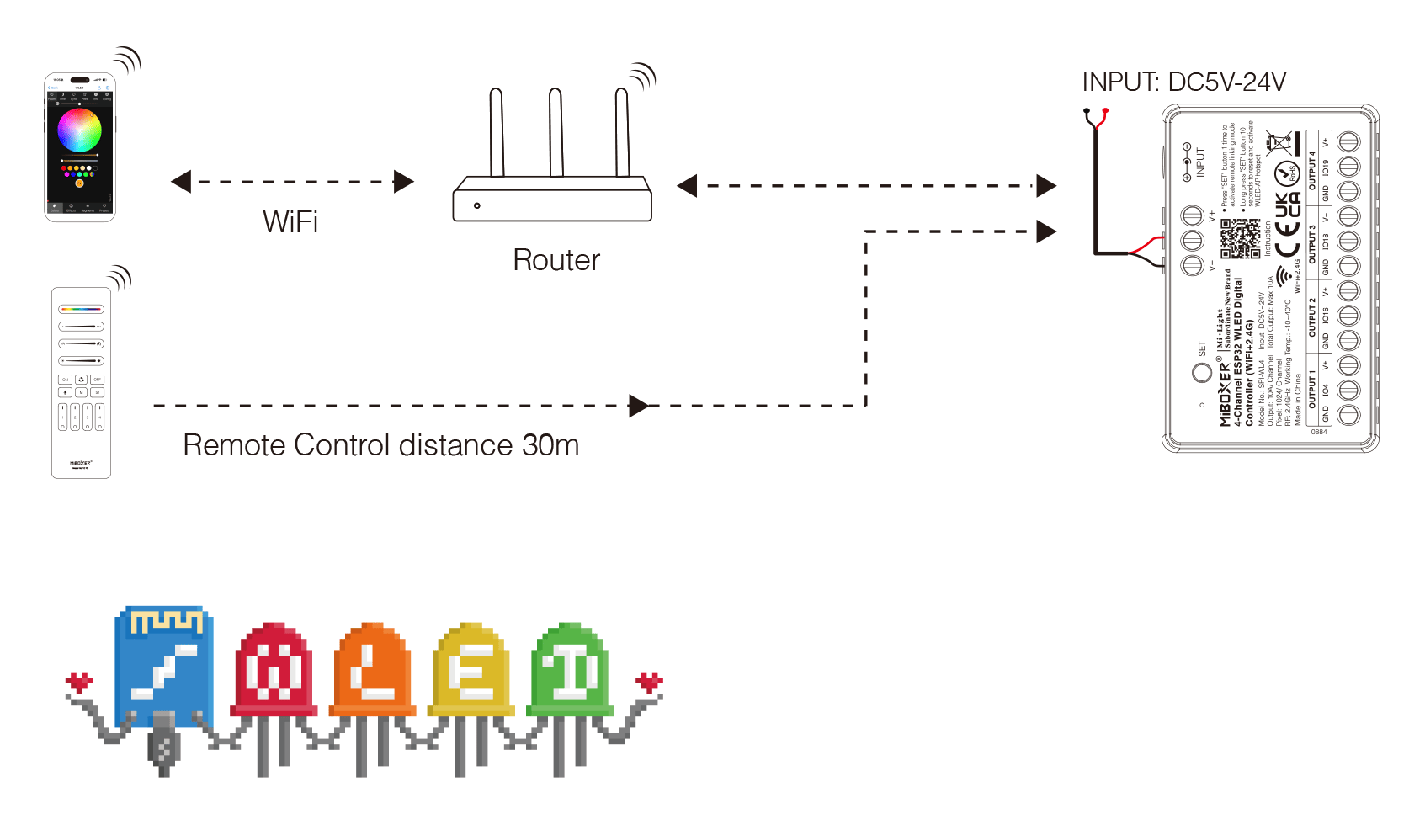

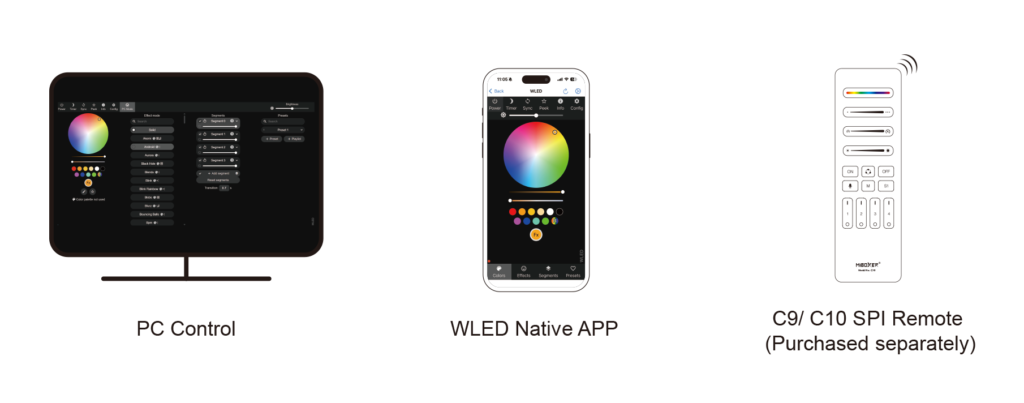

Choose any control method
| Product Name: | 4-Channel ESP32 WLED Digital Controller |
|---|---|
| Model No.: | SPI-WL4 |
| Input Voltage: | DC5V~24V |
| Output Current: | Max 10A |
| Pixel: | 1024 Pixel/ Channel |
| Standby Power: | 0.7W |
| Protocol: | WiFi + 2.4GHz RF |
| Control Distance: | RF: 30m |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |

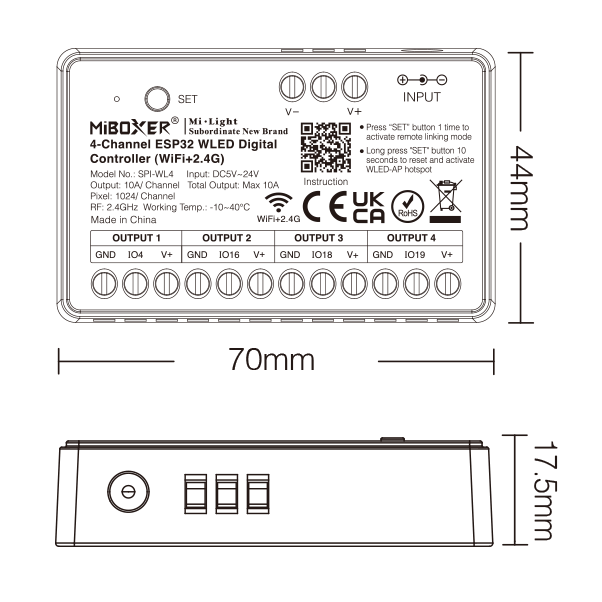

| Dimension: | 70*44*17.5mm |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety Standard (LVD): | EN 62368-1; 2020+A11;2020 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
| Warranty: | 5 Years |
