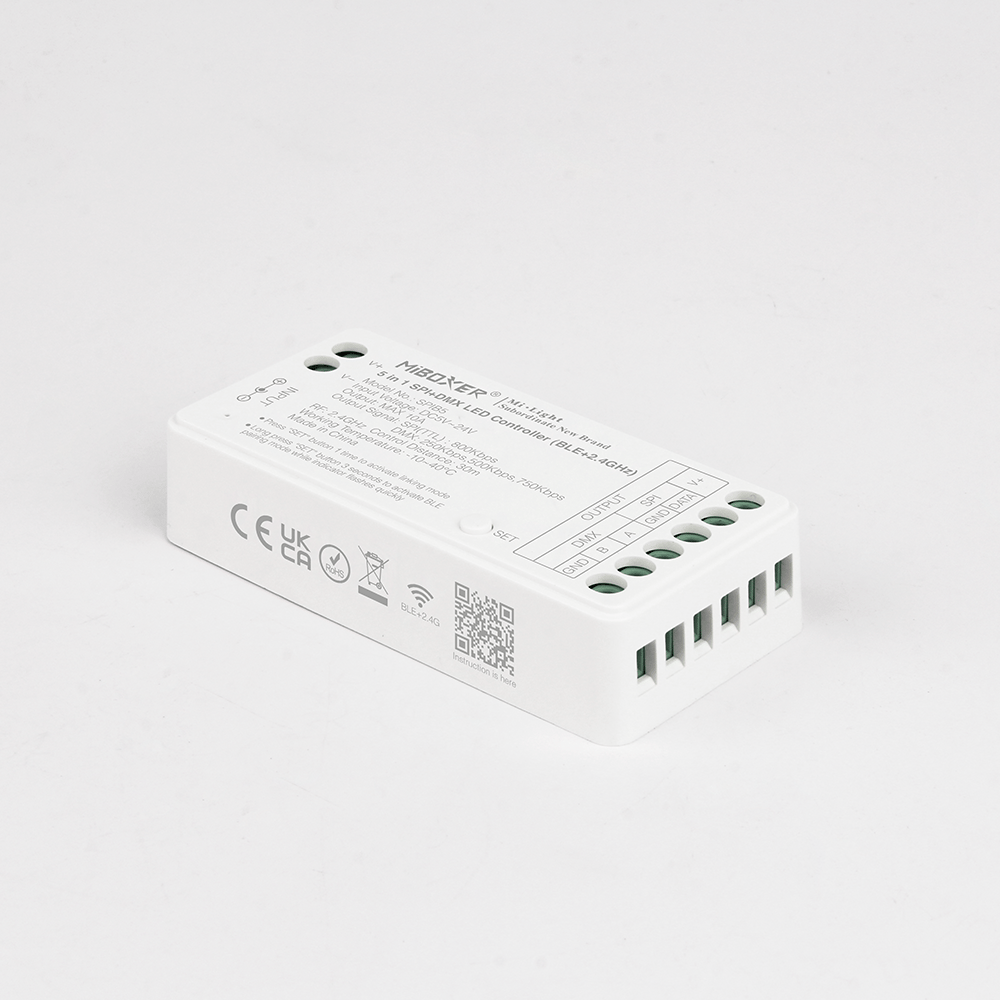

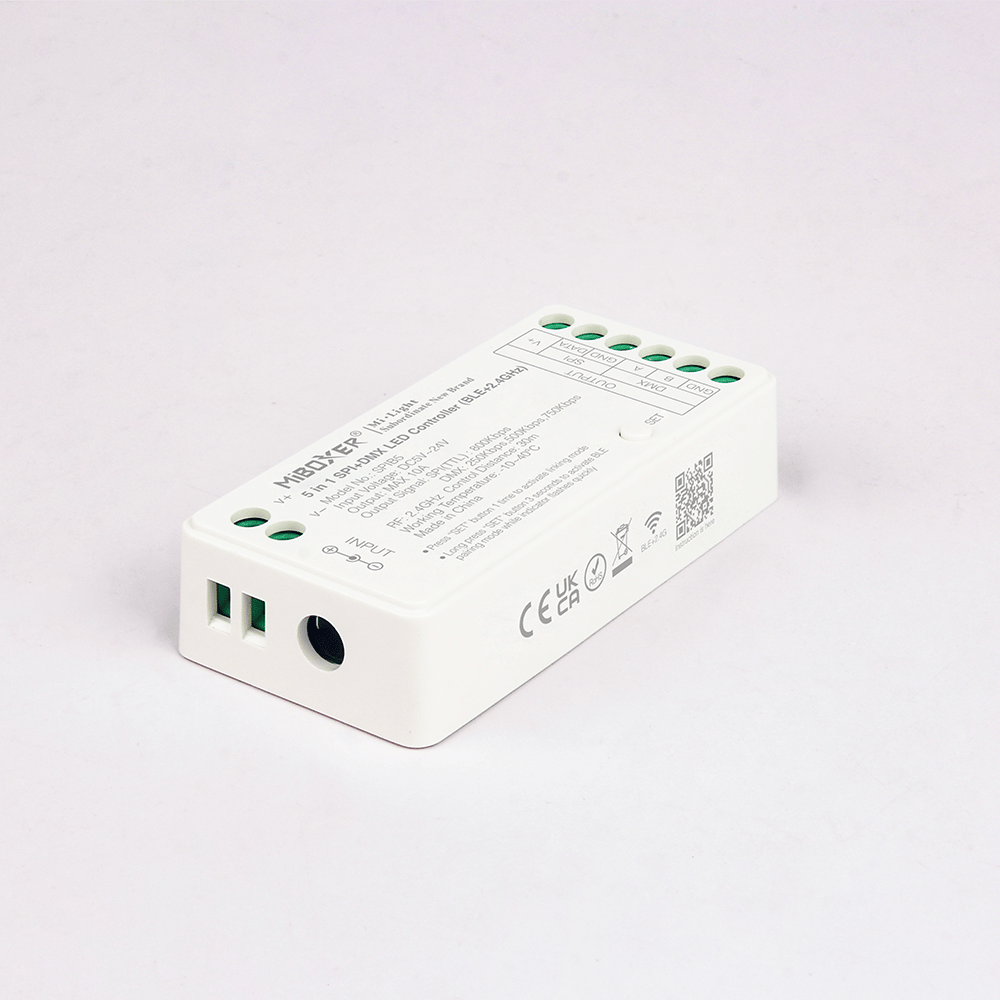

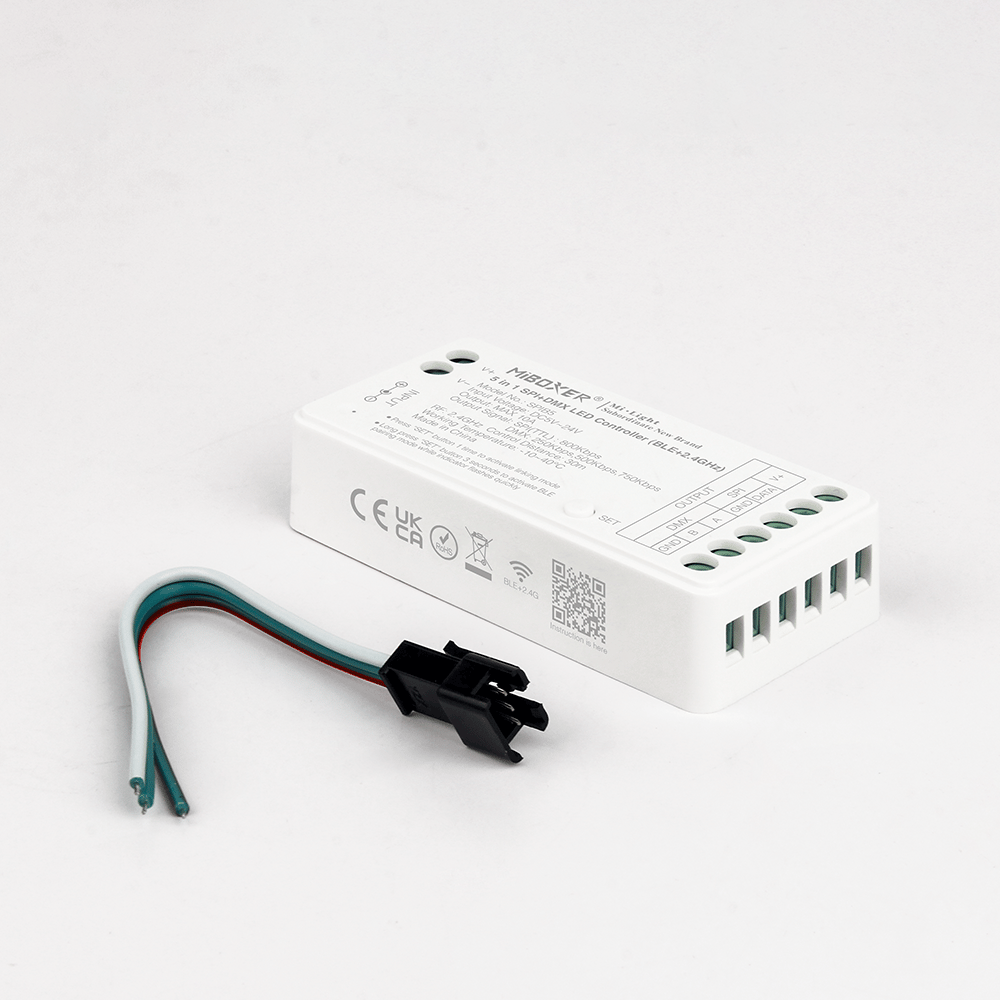

5 in 1 SPI+DMX LED Controller (BLE+2.4G)
This product is already in your cart: 0 pcs View cart
Quantity discount
| Quantity | Price |
|---|---|
| 1 - 9 | 18,90 € |
| 10 - 19 | 16,40 € |
| 20+ | 15,50 € |
Already a wholesale customer? Log in to see your prices
Available on backorder

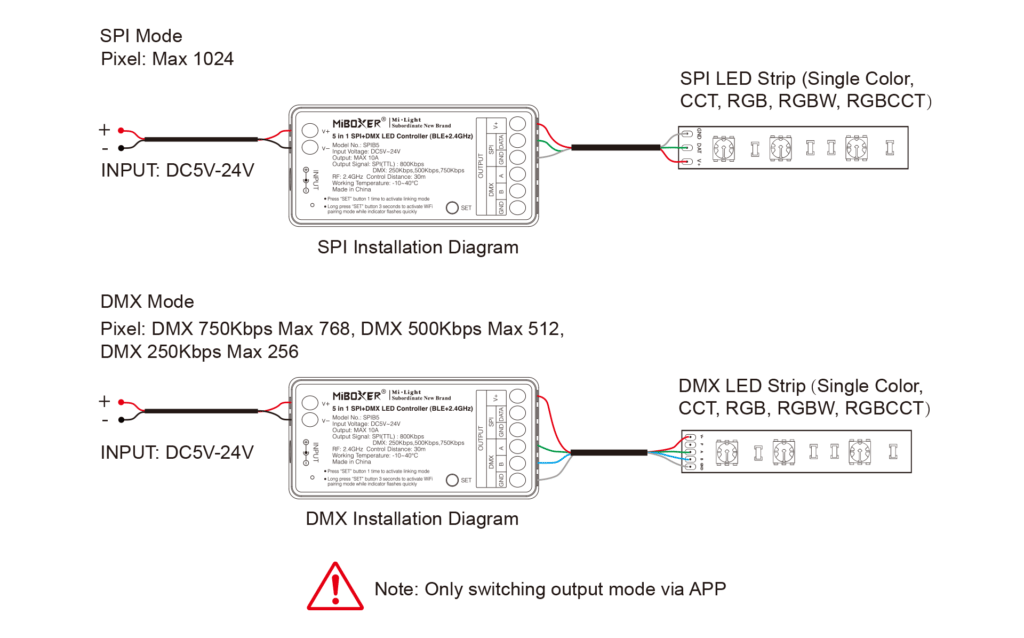

Connection Diagram
| Product Name: | 5 in 1 SPI+DMX LED Controller (BLE+2.4G) |
|---|---|
| Model No.: | SPIB5 |
| Input Voltage: | DC5V~24V |
| Output Current: | Max 10A |
| Output signal: |
SPI(TTL) 800Kbps (Max 1024 Pixel) DMX: 250Kbps(Max 256 Pixel) DMX: 500Kbps(Max 512 Pixel) DMX: 750Kbps(Max 768 Pixel) |
| Standby current: | 20mA |

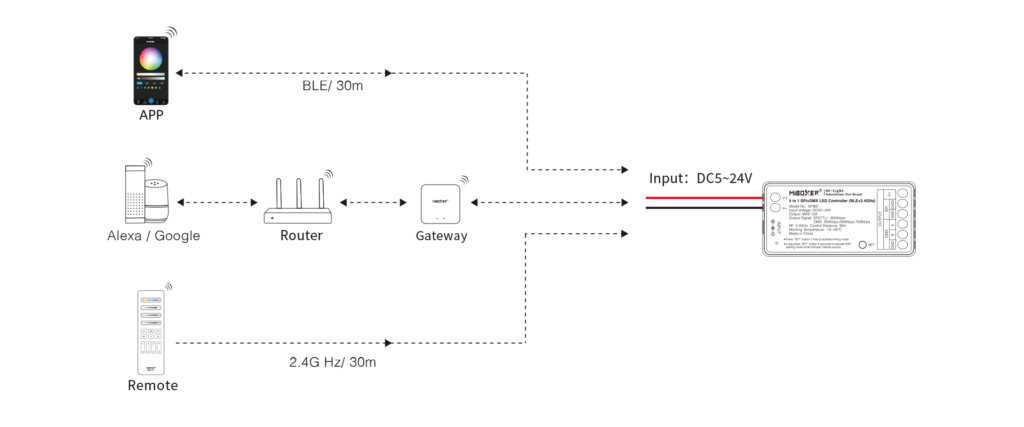

| Protocol: | BLE + 2.4GHz RF |
| Control Distance: | 30m |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |

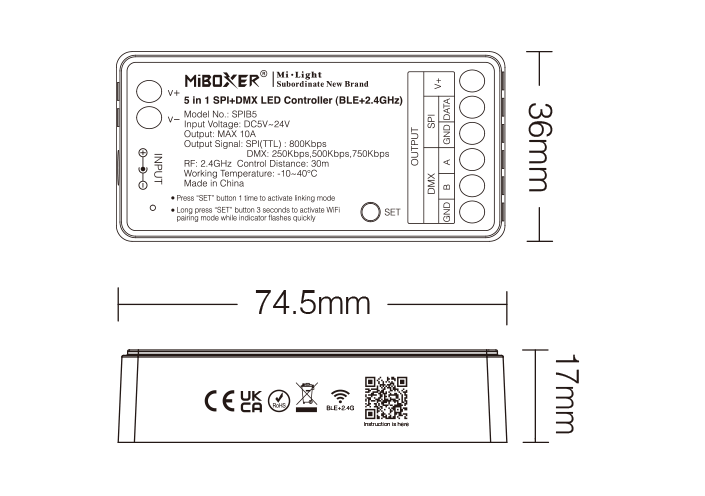

| Dimension: | 74.5*36*17mm |
| EMC Standard (EMC): |
ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety Standard (LVD): | EN 62368-1; 2020+A11;2020 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
| Warranty: | 5 Years |
