Single-wire Triac Dimmer (Zigbee 3.0 + 2.4G)
This product is already in your cart: 0 pcs View cart
Quantity discount
| Quantity | Price |
|---|---|
| 1 - 9 | 25,00 € |
| 10 - 19 | 21,80 € |
| 20+ | 20,50 € |
Already a wholesale customer? Log in to see your prices
Available on backorder

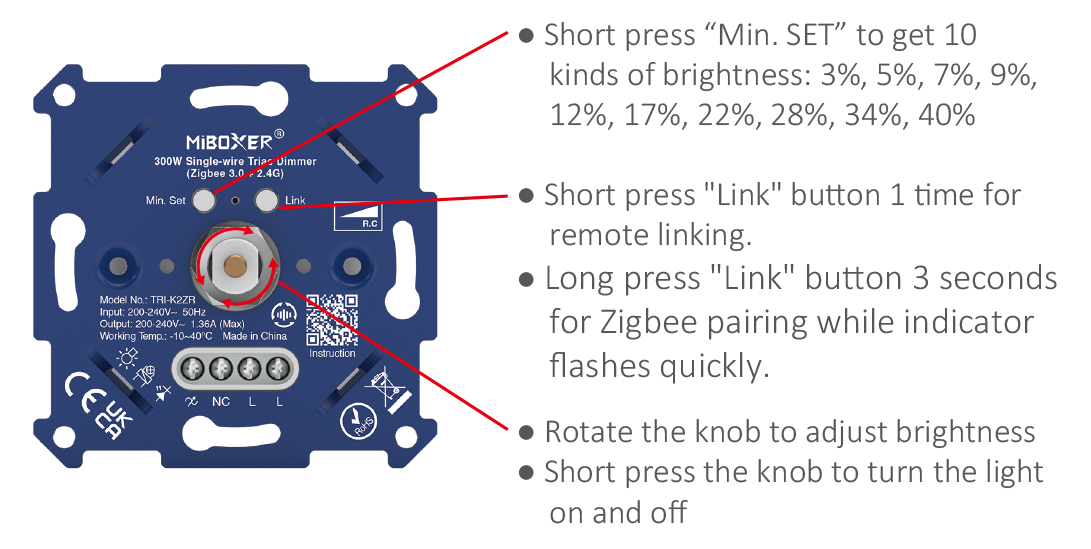

Instructions

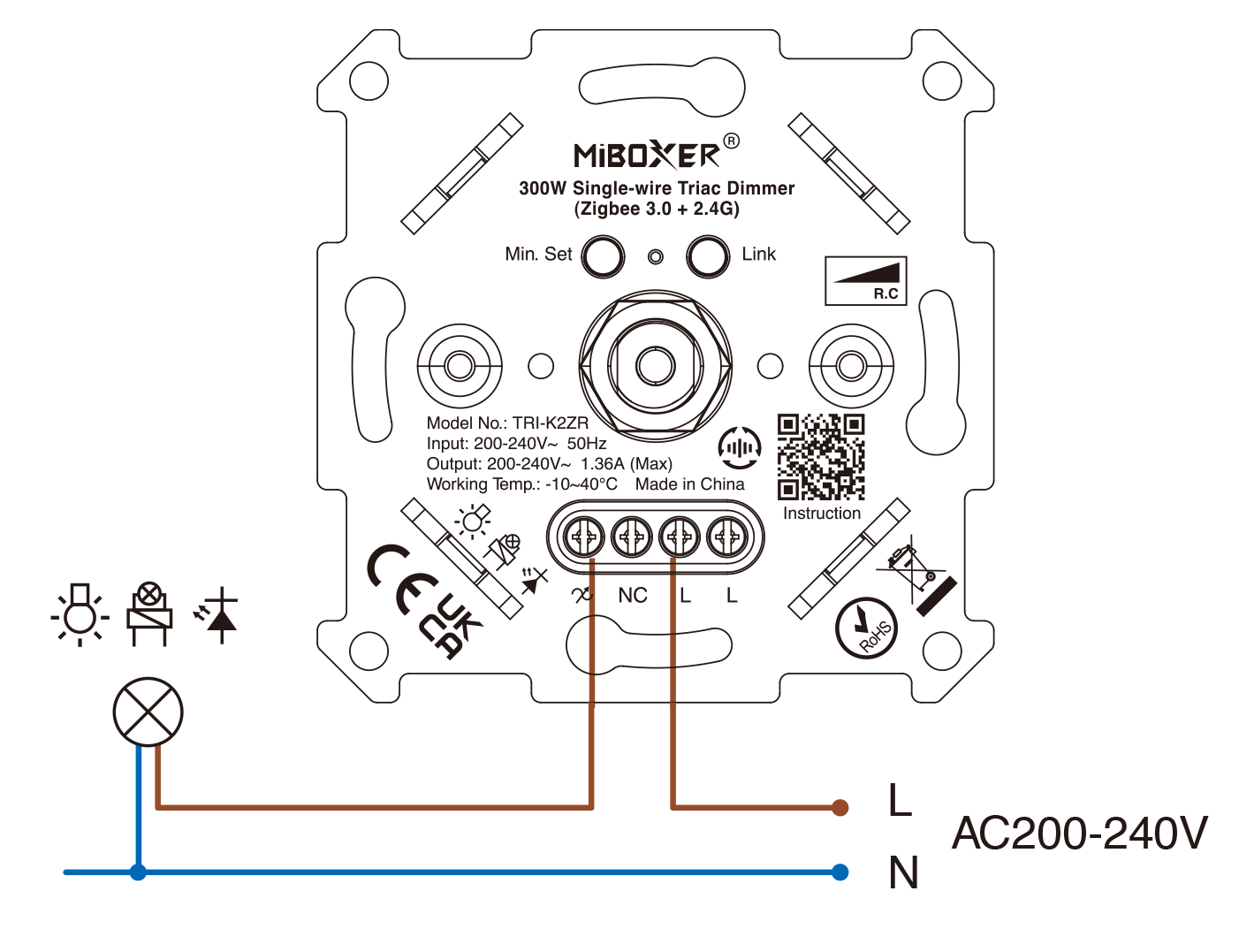

Connection Diagram
Wiring and power supply are directly completed through the live wire circuit.
| Product Name: | Single-wire Triac Dimmer (Zigbee 3.0+2.4G) |
|---|---|
| Model No.: | TRI-K2ZR |
| Input Voltage: | 200-240V~ 50Hz |
| Output Voltage: | 200-240V~ 50Hz |
| Output Current: | Max 1.36A |
| Output Power: | 300W @220V |
| Control Signal: | Zigbee 3.0 + 2.4GHz RF |
| Control Distance: | Zigbee： 50M（Open area）/ 2.4G RF ： 30M |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-3 V2.3.2 |
| Safety Standard (LVD): | EN 61347-2-11: 2001+A1: 2019 EN 61347-1: 2015+A1:2021 EN 62493: 2015+A1:2022 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
